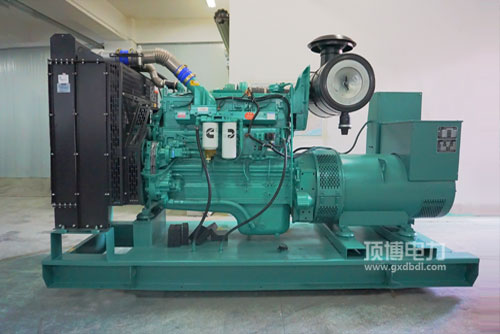

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打着机汽柴油条件性好: 较为先进的汽柴油有效控住电路软件，才有的STC、ESTC 等级有效控住电路软件，唯一性设计方案的缸筒顶部燃燒室，高电压喷洒于汽柴油，完全做雾化，燃燒完全。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用打火机瞬态特性非常好的: 圆满的打火机整体性的设计，结合康明斯独有的EFC操作系统，掌控误差高，回应时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用启动因升工作功率高: 布局设计紧凑型.样貌布局适宜，使用稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50无法在我国非路途最后时段.及北美洲Tier2. Tier 3排放标准相关法律法规请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件必得性好， 起动因进行及服务器维护维修保养便于，总费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力超范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯发电量用启倾向的基本特征：质量小， 进行压缩变高， 集水管气氛热处理，易再启动，活动汽车导航电源模块的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机材质	可用效率(kW)Prime Power	后备电源热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
